The SUNRISE ANC combines a
punching machine in tonnages up to 220 US, with up to a 20’
single-axis fully automatic CNC in-feed system for punching
flat bar, angle and channel webs.
The main frame of the ANC is a
heavily proportioned machined structural steel tube that
provides unmatched rigidity and quality, yet offers simple
set-up, adjustment and maintenance. The servo-driven rack
and pinion guide system features Swiss-made GÜDEL
components, a world leading supplier of automation. The
highly precise components provide +- 0.004” accuracy, high
repeatability and high efficiency due in part to very low
friction, vibration and noise while running under heavy
loads at full operating speeds of up to 490”/minute.
|
The 7” touch-screen controller is
podium mounted for easy placement according to job needs and
features pre-set patterns making programming a simple task.

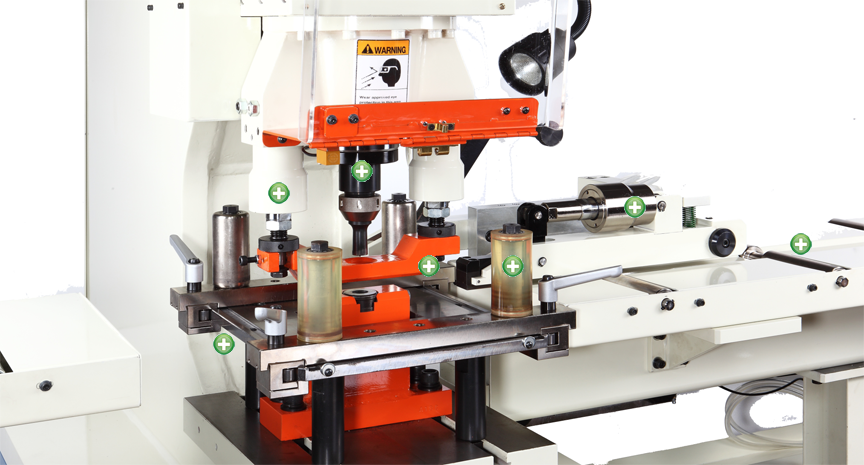

The SUNRISE ANC
features a hydraulic punch stripper as well
as pneumatic material clamping for fully
automatic production.
A specially designed in-feed roller table is
included for full support of the material as
well as specially made strippers and
punching accessories for processing a wide
variety of material.
Furthermore, the SUNRISE ANC
is expandable to a full 20’ of in-feed.
